Home/Our Innovation/Safety Ported Intravenous Catheter

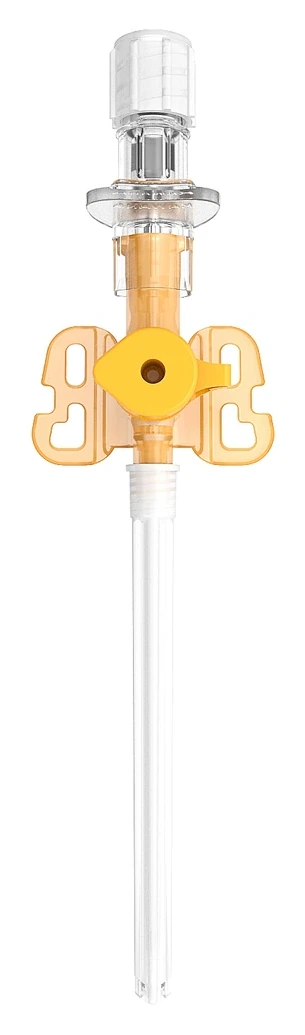

KAWANA Safety G14 (orange)

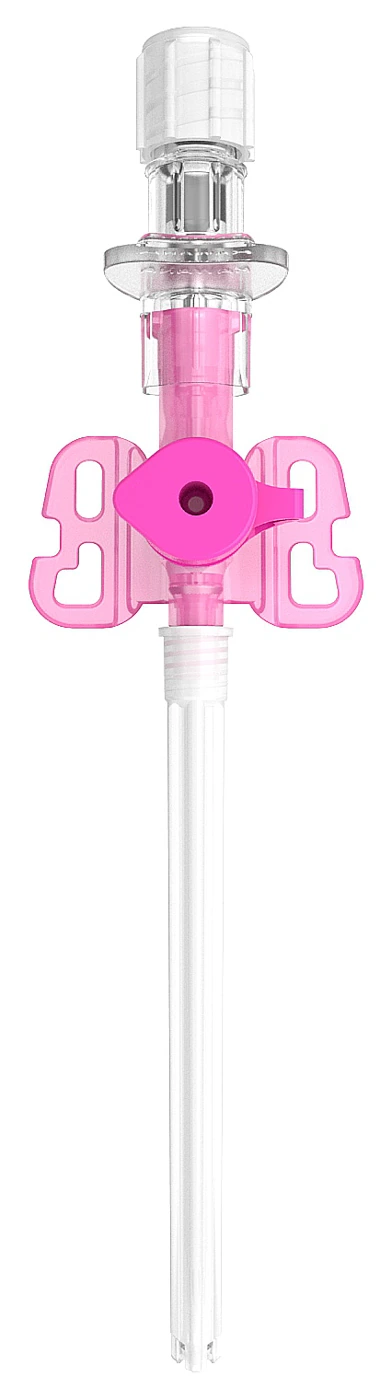

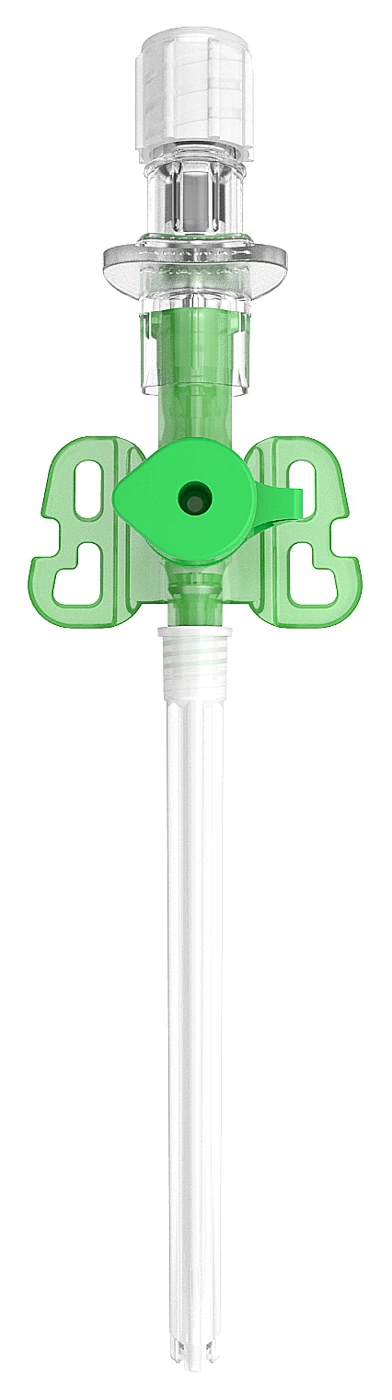

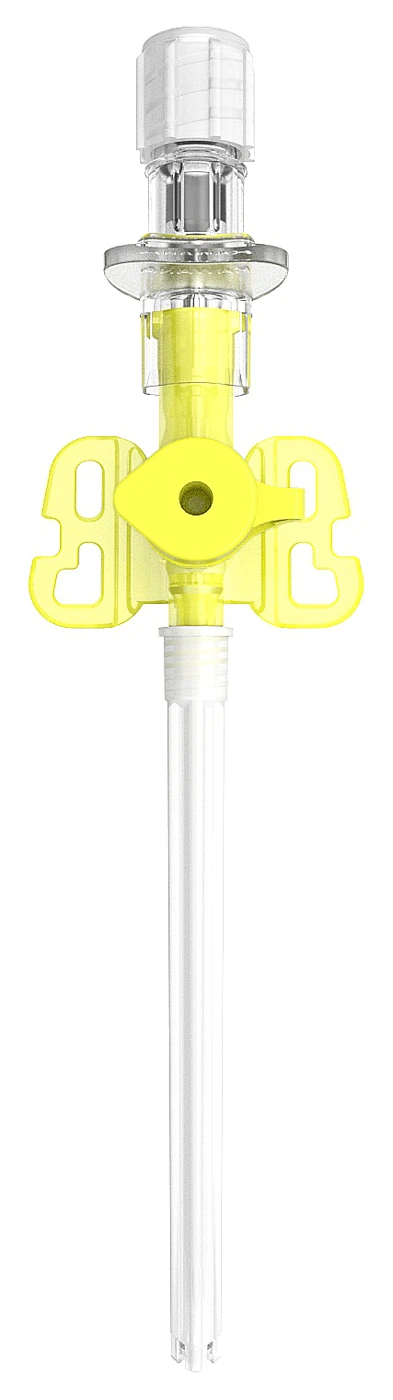

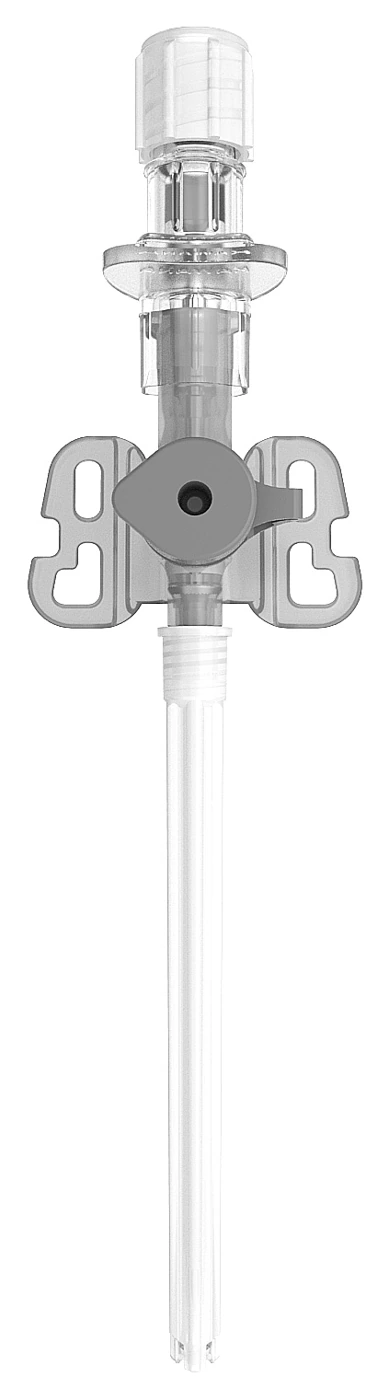

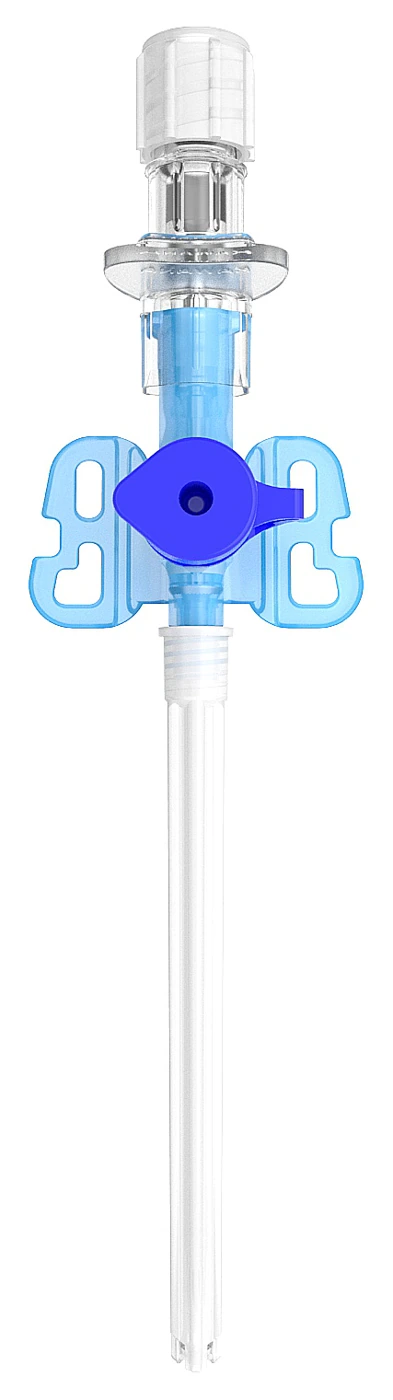

KAWANA Safety G14 (orange) KAWANA Safety G16 (grey) KAWANA Safety G18 (green) KAWANA Safety G20 (pink) KAWANA Safety G22 (blue) KAWANA Safety G24 (yellow)

KAWANA™ SAFETY

Safety Ported Intravenous Catheter

Kawana™ Safety is designed for short-term therapeutic purposes such as administration of:

  • Medications
  • Drugs
  • Fluids
  • Blood Products
  • Blood Sampling

Kawana™ Safety features a protective safety shield that automatically covers the needle tip after blood collection, reducing the risk of accidental needlestick injuries.

Enquire about this product
Product video
Features

Engineered for safety and comfort.

Tip-formed Capillary

Minimises the feeling of pain during insertion.

Safety Shield

Automatically covers the exposed needle tip after withdrawal.

Close-up of the clear safety shield enclosing the needle tip

High Flow Rate

Allows liquid to flow through faster, beneficial during emergencies.

Safety Shield Registration

Regulatory registered safety mechanism.

MDA Reg. No.: GB6443923-124401
Variants

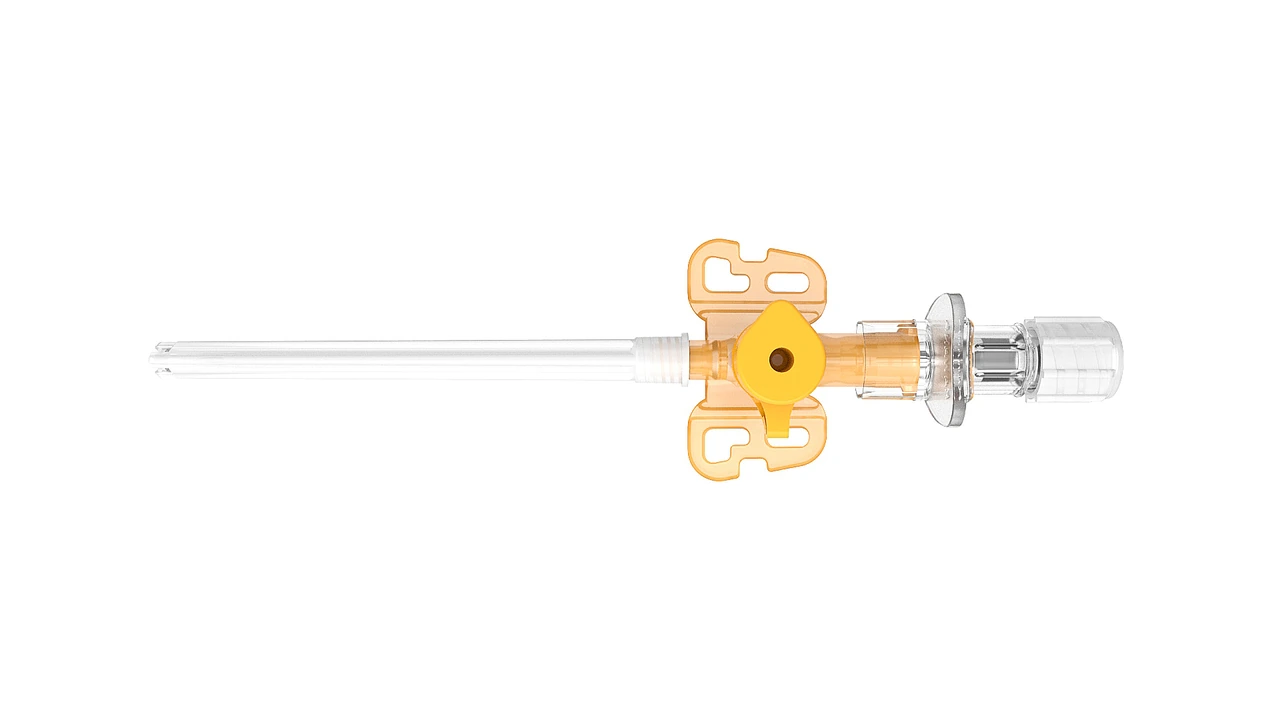

Kawana G14
G14
Dimensions2" (2.2 × 50 mm)
Flow rate315 ml/min
Reference805.K1450.SF

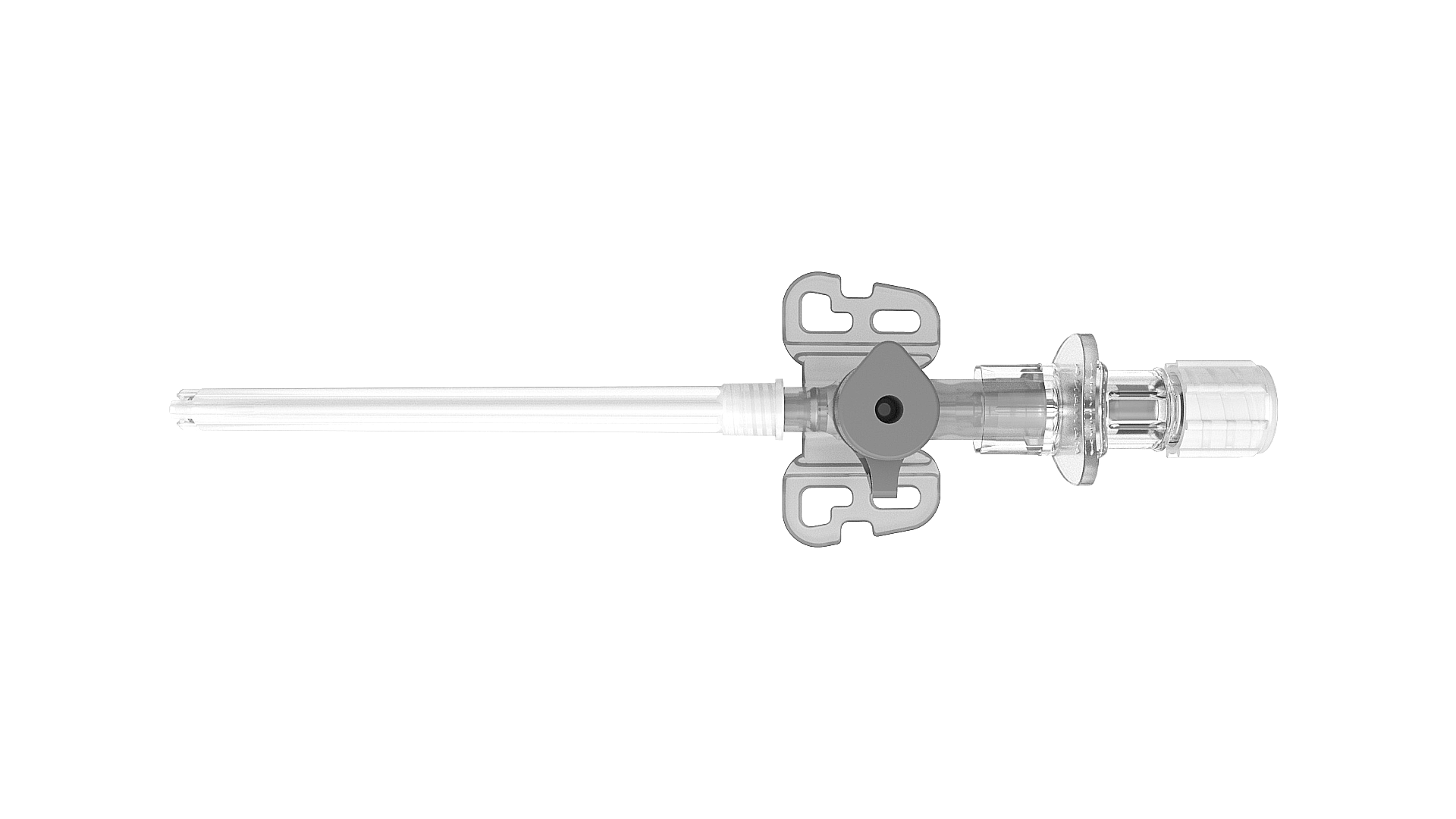

Kawana G16
G16
Dimensions2" (1.7 × 50 mm)
Flow rate195 ml/min
Reference805.K1650.SF

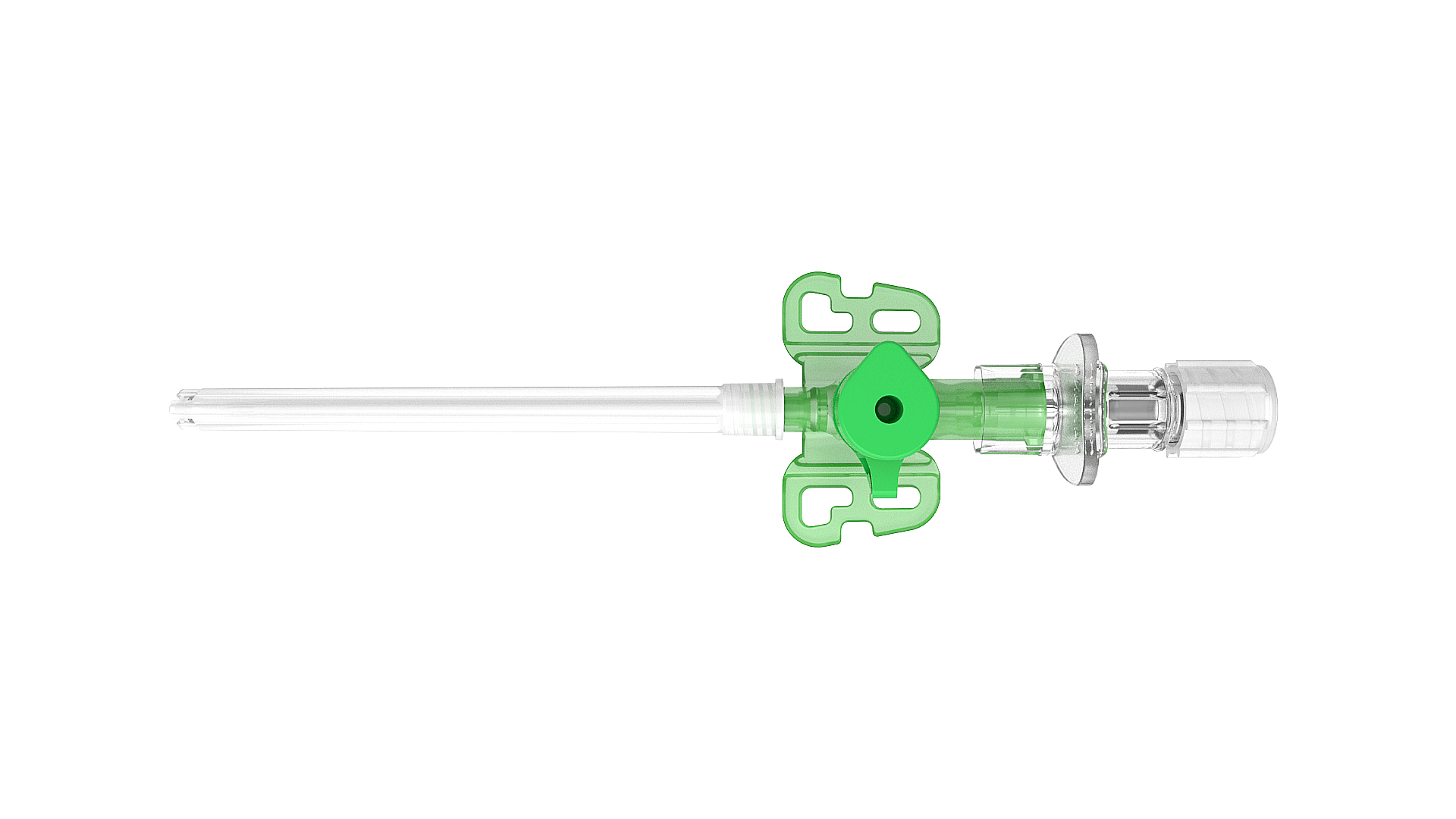

Kawana G18
G1899 ml/min
1¼" (1.3 × 33 mm)
Ref.805.K1833.SF
1¾" (1.3 × 45 mm)
Ref.805.K1845.SF

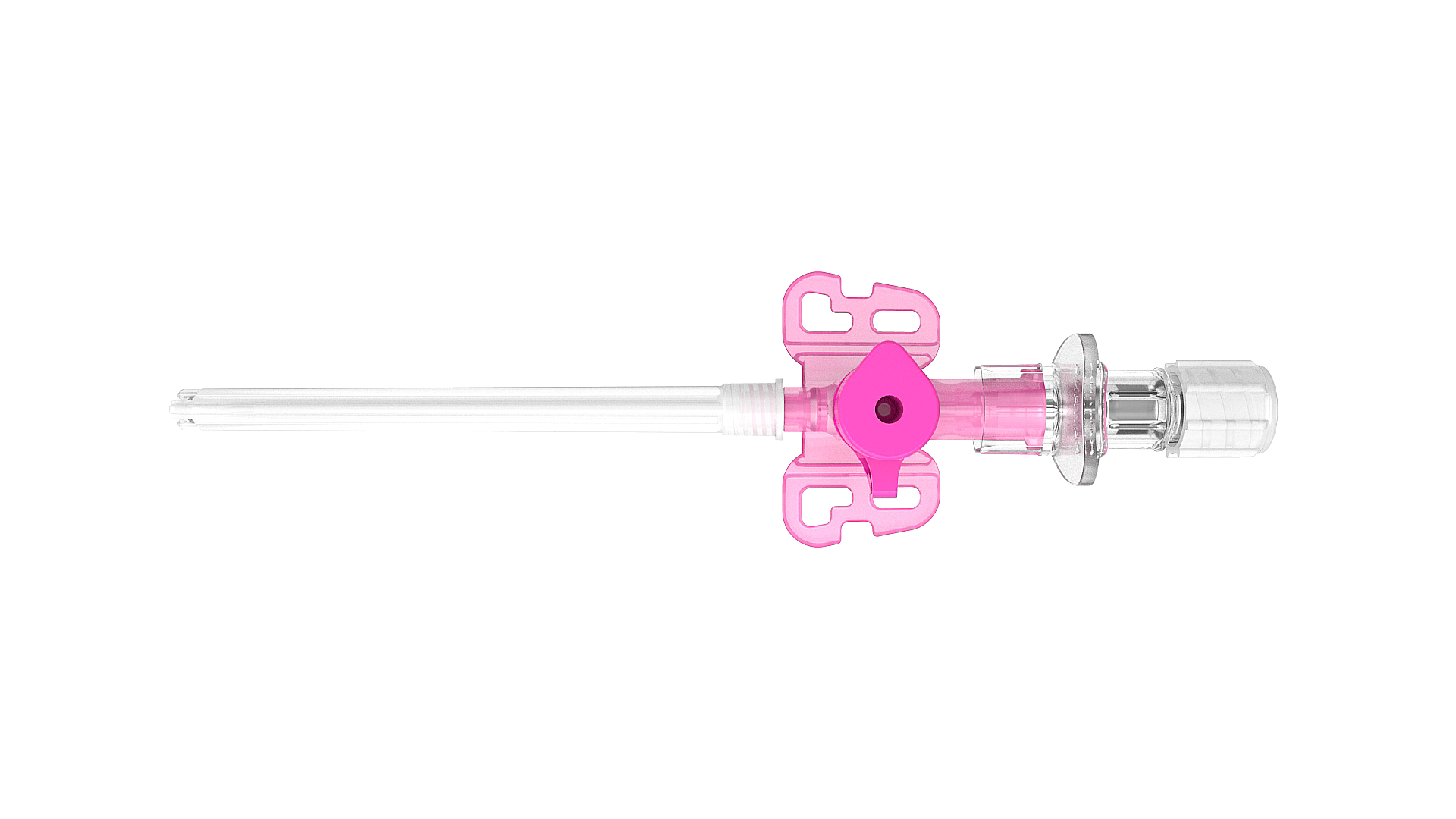

Kawana G20
G2060 ml/min
1¼" (1.1 × 33 mm)
Ref.805.K2033.SF
1" (1.1 × 25 mm)
Ref.805.K2025.SF

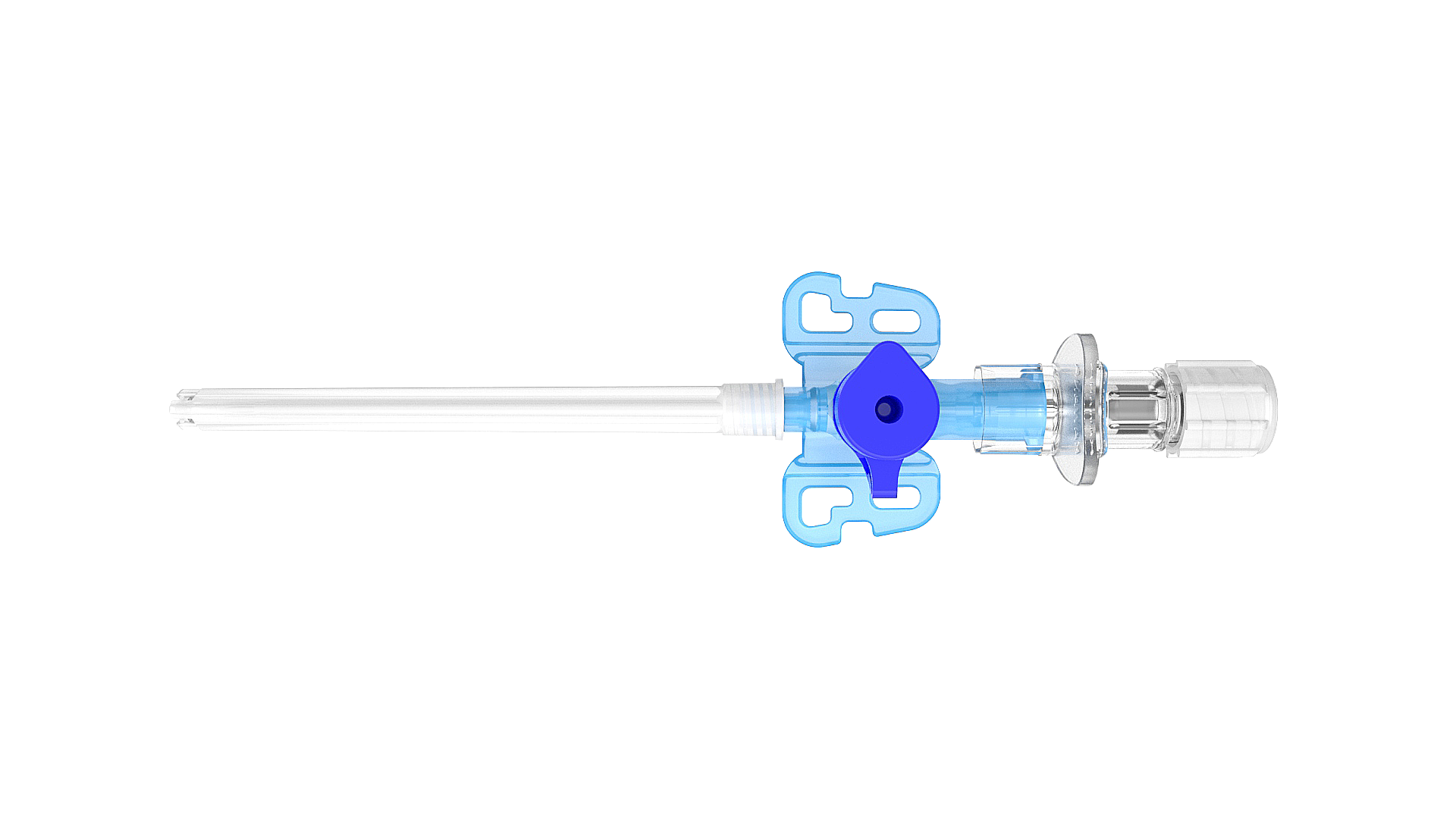

Kawana G22
G22
Dimensions1" (0.9 × 25 mm)
Flow rate35 ml/min
Reference805.K2225.SF

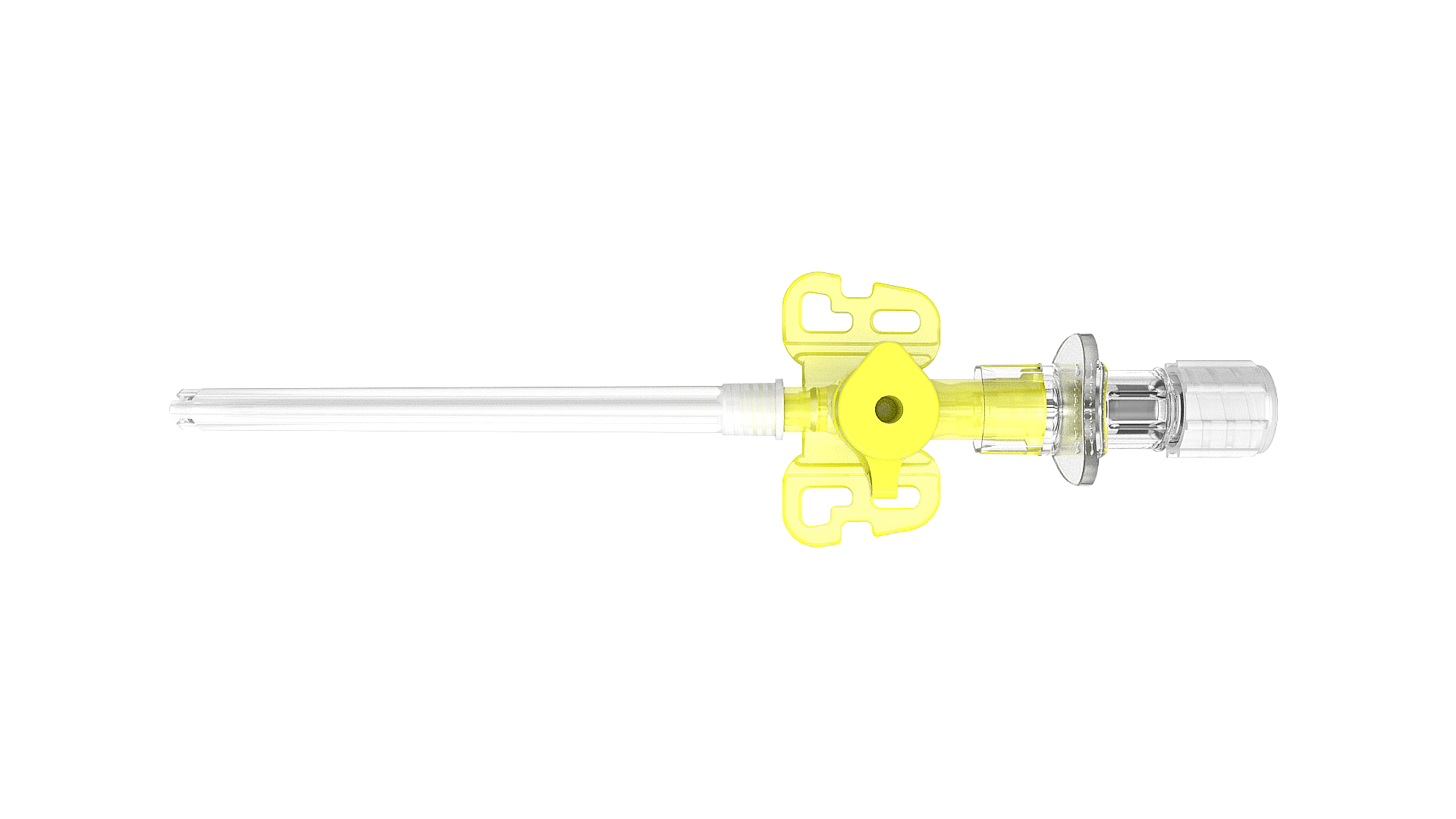

Kawana G24
G24
Dimensions¾" (0.7 × 19 mm)
Flow rate21 ml/min
Reference805.K2419.SF

Hub colour indicates gauge size per ISO 6009. Each gauge is available in FEP or PUR catheter material, with PRI, KOI and POI colour options. Full part-number listing available in the product brochure.

Downloads

Guides & manuals.

Product Brochure

Please fill in your information to download the product brochure.

Please enter your name.
Please enter a valid phone number.
Please enter a valid email address.
Security Please confirm you're not a robot.
Instruction for Use (IFU)
Cover of the KAWANA Safety Instructions for Use

Detailed usage and safety instructions for clinical staff.

PDF · 10 pages · Rev06 · 07/2025 · 5.5 MB
View IFU Download PDF
Educational Material

Training resources for safe handling and administration.

Currently not available
